Black and Decker EU Batteries wall kit (V2 - much better version!)

prusaprinters

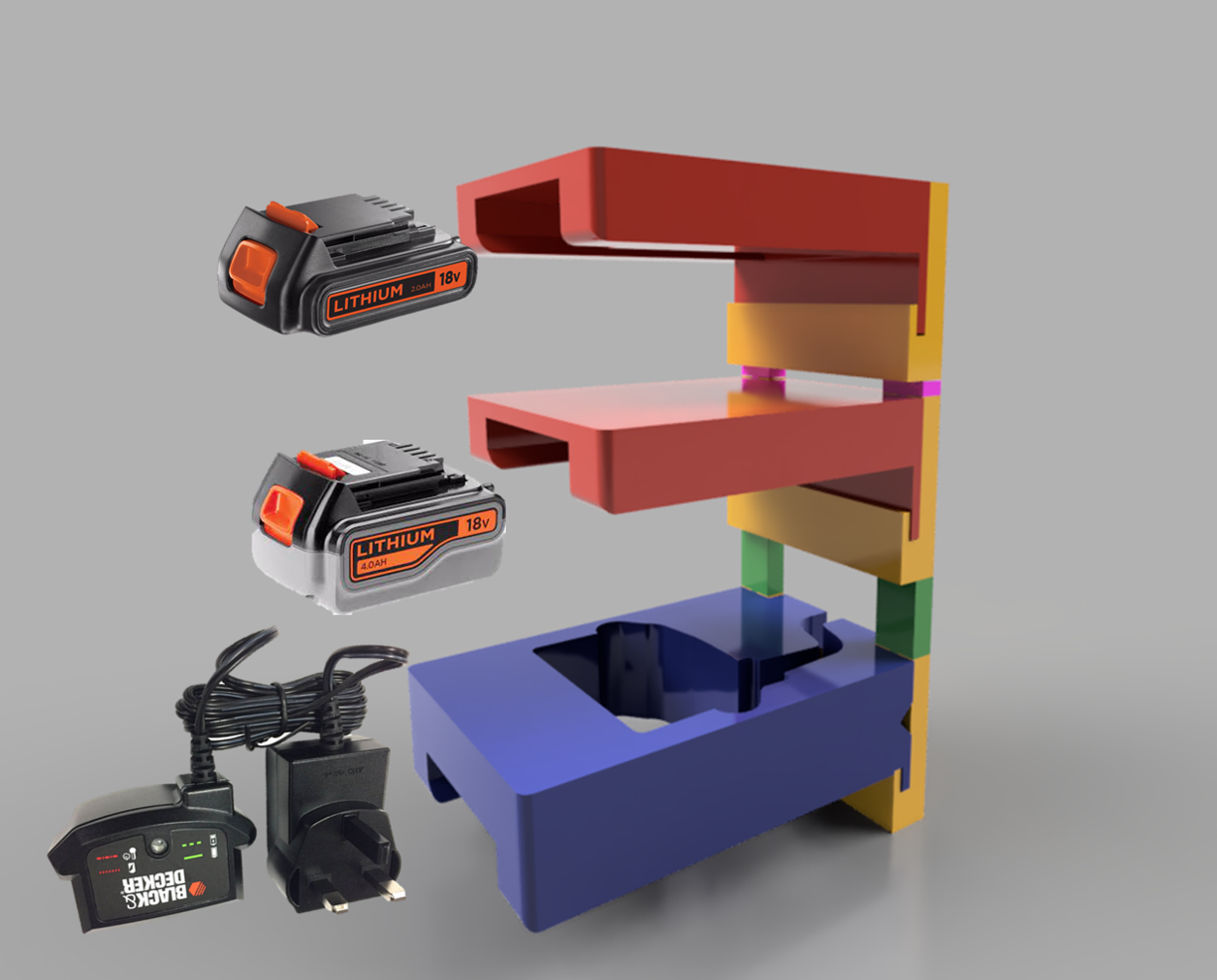

<figure class="image"><img src="https://media.printables.com/media/prints/304517/rich_content/9cb7817b-5fb7-49d2-bb50-1f345b206157/fact-sheet.png#%7B%22uuid%22%3A%22e9e90ee5-9357-4f19-a034-524b72dd2395%22%2C%22w%22%3A3584%2C%22h%22%3A2051%7D"></figure><p>Different parts and shapes. &nbsp;</p><p>#1 is universal holder for Batteries (18 votls)</p><p>#2 is to held the charger in the mount so you can slide &amp; charge battery - note that you can hide the wire in de gap made to host it betweent the holder and the wall mount (see picture)</p><p>#3 is the wall mount - it fits #1 and #2</p><p>#4 &amp; 5 are spacers for thin and thick batteries (example 2 amp and 5 amps)</p><p>All can be printed without support (charger holder uses bridges though) - all angles are max 45 degrees</p><p>Batteries are heavy so I used quite sturdy options</p><ul><li>8 walls</li><li>4 top/botom layers</li><li>20% infill</li><li>4mm nozzle, 0.24 layer height</li><li>My printer worked witout any brim (Bambu Labs)</li></ul><p>There's already a build-in gap for the parts that fit into each other but test first if they fit on your machine - you might want to add some <a href="https://www.youtube.com/watch?v=-jsBI3OeUJQ">horizontal expansion</a></p><p>Print the following way up:</p><figure class="image"><img src="https://media.printables.com/media/prints/304517/rich_content/a856b2e2-ed11-4c2e-9d60-2dc8d662d30b/print-this-way-up.png#%7B%22uuid%22%3A%22d177a388-9b8e-461f-85e1-50b1cfdf8fa4%22%2C%22w%22%3A1738%2C%22h%22%3A924%7D"></figure><p>&nbsp;</p><p>Note after install:</p><p>The spacers are not meant to hold any force. You still need to screw each one of the holders. The spacers can break easily but even if they do you still use them to space out the next one and it's all hidden under. &nbsp;</p><p>Use screws with very small heads that can snug in the hole.</p><p>Print the wall mounts in solid infill.</p>
