BIQU H2 Ender 3 V2 mounting plate with CR Touch

prusaprinters

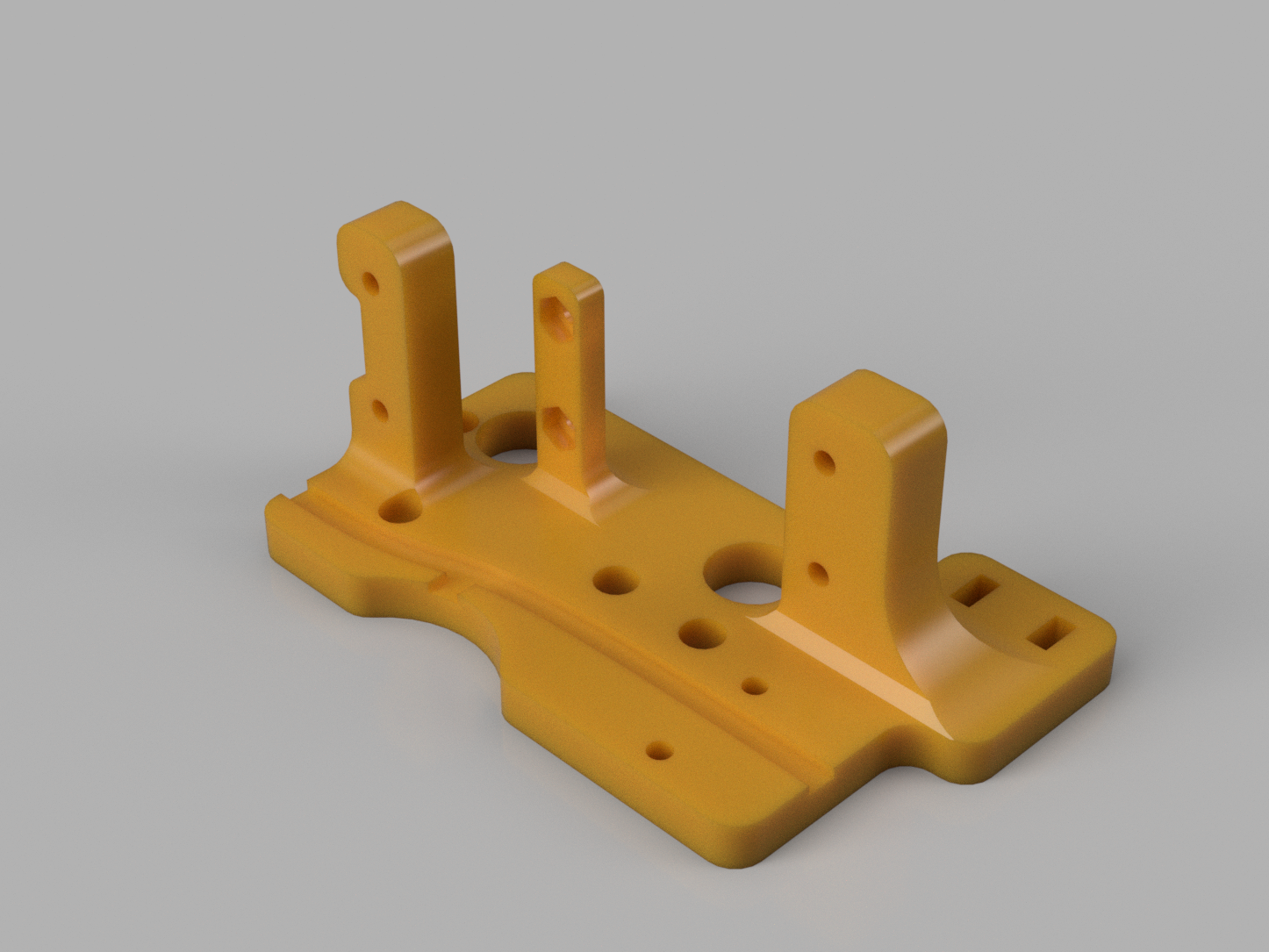

<p>This remix version aims to make the extruder mount more secure. I've increased the dimensions of the top bracket and added some more brackets to the bottom (v2).</p><p>On the ABL mount I've cut out a slot on the top to make the wires fit for a CR Touch. I've also made a slot along the bottom for it's cables to route through (you may also get the fan cable through there).</p><p>I've also made room for an ADXL345 sensor on the top.</p><p>&nbsp;</p><p><strong>My print settings using the BIQU H2:</strong></p><ul><li>Nozzle temp: 240°c</li><li>Bed temp: 80°c</li><li>NO cooling</li><li>Retraction distance: 0.5mm</li><li>Retraction speed: 6mm</li><li>Print speed: 80mm/s (40mm/s wall speed)</li><li>Nozzle size: 0.8mm</li><li>Layer height: 0.4mm</li><li>Line width: 0.8mm</li><li>Infill: 50% Gyroid</li><li>Walls: 4</li><li>Top/Bottom: 4</li><li>NO supports<br><br>&nbsp;</li></ul><blockquote><p><strong>Update: Added V2 (18 april 2022):</strong></p><p>Added some more supports on the bottom. Changed the cable groove to fit the thermistor and heater cables (maybe).</p></blockquote>
