Biqu/Bigtreetech TFT24 v1.1 ender 3 mount

prusaprinters

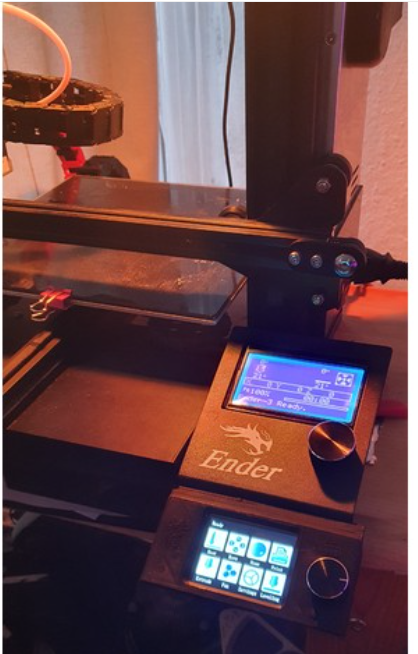

<p>main body was by Zen3Dhu</p><p>&nbsp;</p><p>As banggood seems not to sell the correct cable for attaching the tft24 to the ender 3 via the e3 mini v1.3 mainboard in the original mode, until i have timew to create my own cable for it, i have kept the original screen in place and have installed this for extra functions via touch.</p><p><i>edit</i> - having spliced the cable in order to be able to use both screen functions, I have decided to stick with both, you cannot switch between screens mid-print and I like some functions of both screens.</p><p>IMPORTANT! screw in the top bolt for attaching to the frame first or you will not be able to put the bolt in after board install, then mount with the bottom two hole on the screens pcb (you wont be able to reach the top two. lastly, install the bottom bolt.</p><p>printed face down with tree supports (cura experimental) in PLA</p><p>80mm/s<br>195degrees<br>60 bed (glass + thin PVA glue layer)<br>35% infill but would be fine with 20+ in my opinion<br>0.2mm layer height<br>retraction and zhop on for the sake of the tree supports</p><p>no raft or brim required with the PVA glue layer</p>
