Bike rear light/GoPro clamp with hidden fastners
prusaprinters

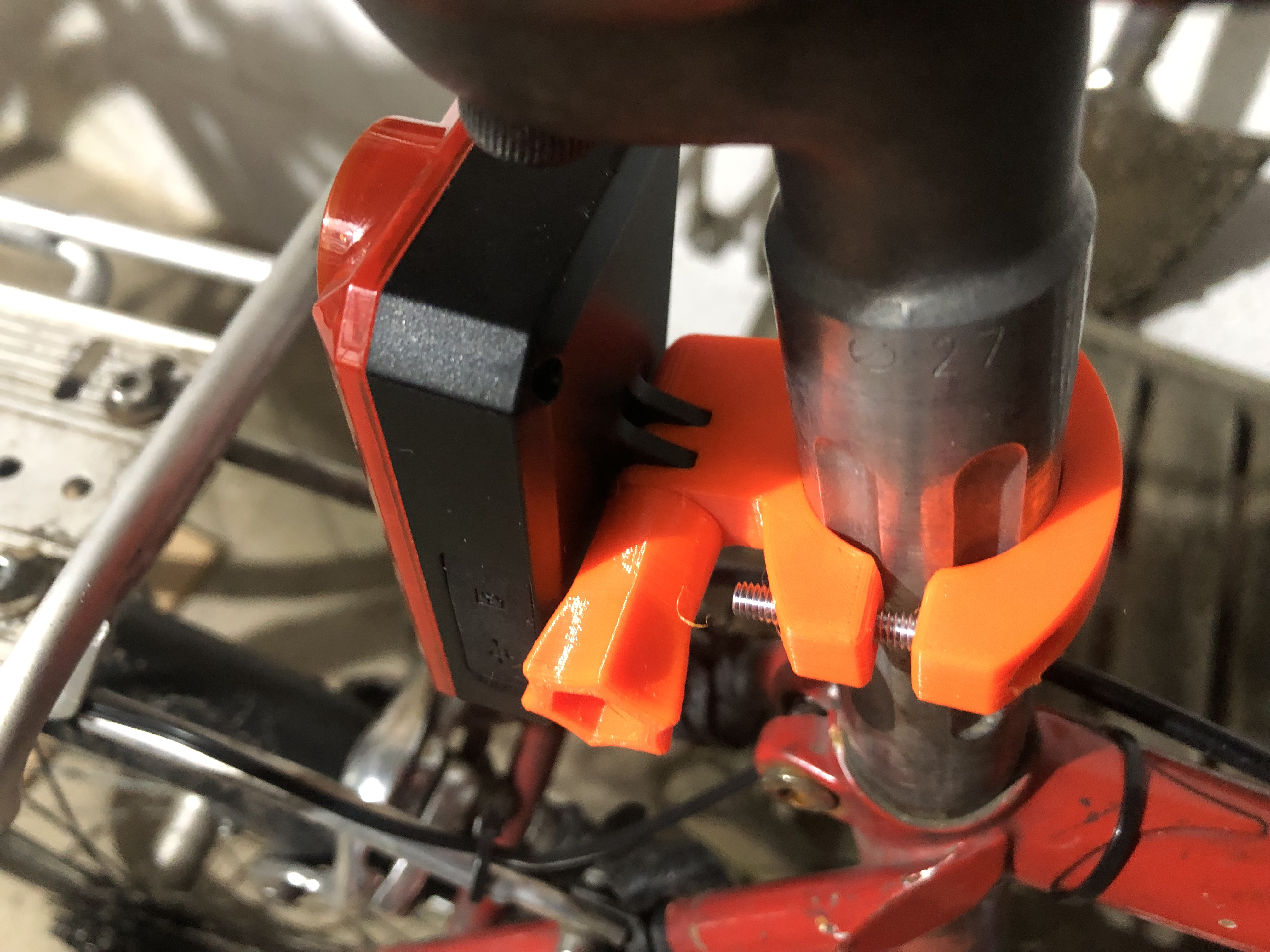

<p>I bought a bike rear light combined with a camera online, as drivers around me need keeping an eye on. But the supplied clamp was too wide, and chafed my thighs.</p><p>So I created another one which is much narrower and neater than the manufacturer's offering, plus I can print one for each of my bikes! I used PrusaSlicer's ‘pause’ function to drop in M4 nuts at the right point in the print, so the nuts are totally covered and will not fall out by accident.</p><p>I was most proud of my use of support enforcers and blockers plus the pause in PrusaSlicer, to allow me to drop in a bolt into the hand screwholder print, so it uses a metal bolt but with a 3D printed grip so the bolt cannot get lost on dark nights.</p><p>You will need:</p><p>2x M4 x 25mm cap head bolts</p><p>2x M4 nyloc nuts</p><p>1x M5 nyloc nut</p><p>1x M5 x 25mm hex head bolt</p><p>1x <a href="https://smile.amazon.co.uk/gp/product/B089QNLSHM/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1">Camera/light </a>plus SD card</p><p> </p><p>This clamp fits 27mm diameter seat posts, but I've attached the SolidWorks files in case you wish to modify further.</p><p>I feel much safer riding, knowing that drivers now face consequences.</p><p> </p>
