Bike Kickstand
prusaprinters

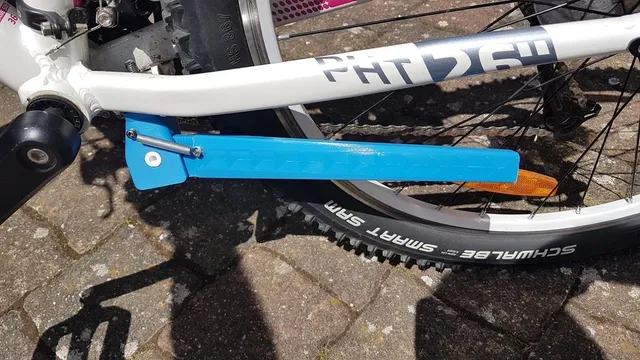

Bike Kickstand (Fahrradständer), designed for my daughters new bike.Improved version of the Bike Kickstand for more stability8mm joint instead of just 6mmInner joint and leg merged into 1 partStylish legEasy to print and assemble, just 3 parts:Outer joint (print flat side down without support and >50% infill)Leg (with support, >60% infill)Bolt (no support)Assembly:Attach the leg to the outer joint and push the bolt through the hole (e.g. using a hammer).Put some screws into the small holes in the joints and attach a spring (optional if printed tight).Fits for a 26" bike, but could be scaled up to larger bikes too.Printed using GCodePrintr App. http://3dprintapps.de Print SettingsPrusa I3 MK3SResolution:0.25Infill: 60%
