BFight 210 Slide On Motor Protector 22-23xx

prusaprinters

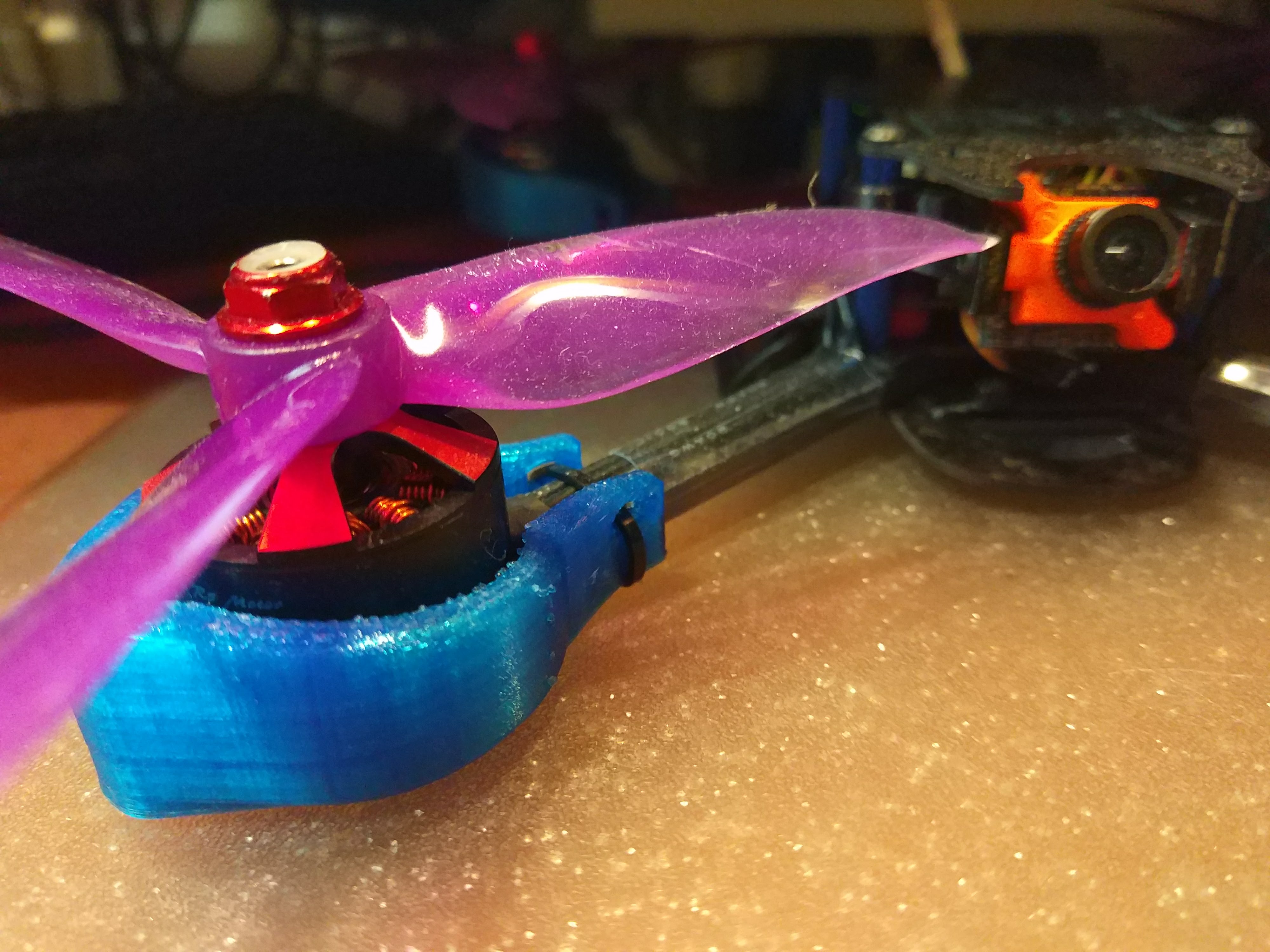

<p>This is a motor protector i designed for the BFight210 or BFlight210 Frame.<br/> It can easily be mounted securely by using just one little zip Tie.</p> <p>I designed it to be used with the Brotherhobby Returner R5 2306 Motors but should be a good fit as well for any 22-23xx motor</p> <p>There are 2 versions in 30 and 31.5mm inner diameter.</p> <p>Leave a like and share your makes if you find this useful ;-)</p> <h3>Print instructions</h3><h3>Category: R/C Vehicles Print Settings</h3> <p><strong>Printer:</strong> Kossel XL</p> <p><strong>Rafts:</strong> Doesn't Matter</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> 0.2mm</p> <p><strong>Infill:</strong> 10-15%</p> <p><strong>Notes:</strong></p> <p>Print this in TPU with 1 or 2 Perimeters.<br/> It has been designed especially to be printable without support</p> <h3> How I Designed This</h3> <p>This was designed using a scan of the actual Arm in Fusion 360</p>
