Better Logitech C270 Prusa Mini Mount

prusaprinters

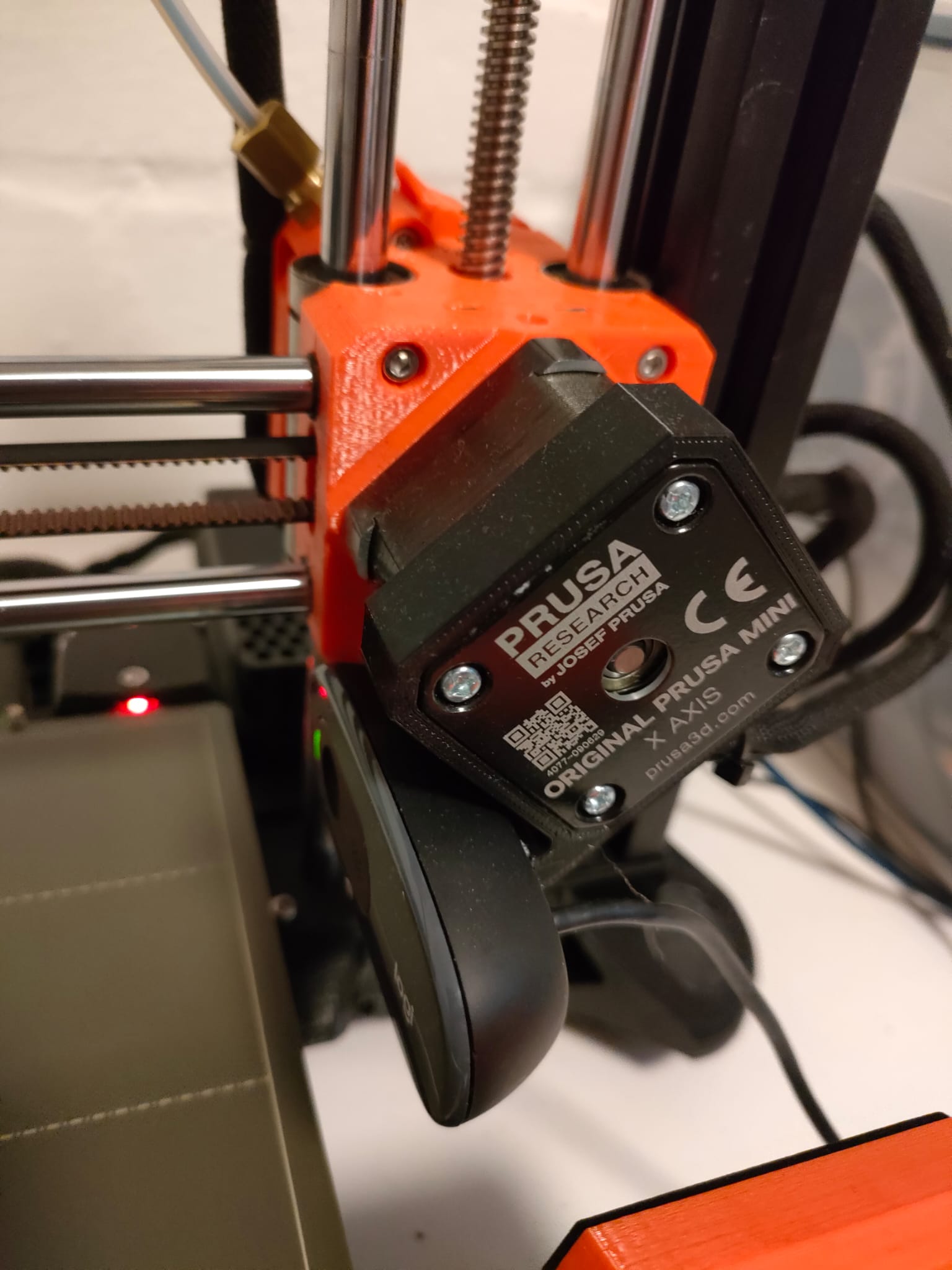

<p>I have remixed the the design from jagr200.</p><p>I have changed the angle of the camera so that the camera has a better view of the nozzle.</p><p>I have also made the mount slighty bigger so that the mount isn't so lose.&nbsp;</p><p>Now it almost snaps in place.</p><p>&nbsp;</p><h3><strong>Assembly:</strong></h3><p><strong>Step 1:</strong></p><p>Disassemble the camera. You only need the camera and the black pin from the camera.</p><figure class="image image-style-align-center image_resized" style="width:50%;"><img src="https://media.prusaprinters.org/media/prints/125065/rich_content/99574e96-2854-405d-be6c-900025659fe7/pic_01.jpeg#%7B%22uuid%22%3A%2212b0cfbb-7e8f-4fa0-a9af-69f18bcce50d%22%2C%22w%22%3A1525%2C%22h%22%3A1289%7D"></figure><p><strong>Step 2:</strong></p><p>Mount the camera with the black pin on the printed part</p><figure class="image image-style-align-center image_resized" style="width:50%;"><img src="https://media.prusaprinters.org/media/prints/125065/rich_content/4cdc19fe-790b-4755-8ade-38498238c465/pic_02.jpeg#%7B%22uuid%22%3A%22b8551ccd-5dc9-458d-8b2a-0a3a37e58d13%22%2C%22w%22%3A1527%2C%22h%22%3A1339%7D"></figure><p><strong>Step 3:</strong></p><p>The mount is now ready and can be mounted on the Prusa Mini</p><figure class="image image-style-align-center image_resized" style="width:50%;"><img src="https://media.prusaprinters.org/media/prints/125065/rich_content/3627ca4c-7441-4df1-a276-c9cbb5044622/pic_03.jpeg#%7B%22uuid%22%3A%222256e4a2-3f7a-4662-85f8-aa0803616227%22%2C%22w%22%3A1179%2C%22h%22%3A897%7D"></figure><figure class="image image-style-align-center image_resized" style="width:50%;"><img src="https://media.prusaprinters.org/media/prints/125065/rich_content/c03d21ea-f71e-4244-a6d7-46fa5eda5688/img20220127113521.jpg#%7B%22uuid%22%3A%22882cdfa5-a8e0-4cac-9674-89e3faf85e5f%22%2C%22w%22%3A3468%2C%22h%22%3A4624%7D"></figure><h3><strong>Disassemble the mount:</strong></h3><p>Push the black pin out through the other hole with an Allen key</p><figure class="image image-style-align-center image_resized" style="width:50%;"><img src="https://media.prusaprinters.org/media/prints/125065/rich_content/ff898767-7e73-4de6-98c1-2401efa41569/pic_04.jpeg#%7B%22uuid%22%3A%224db4936a-5f67-4b26-a456-83e8a53bc667%22%2C%22w%22%3A1279%2C%22h%22%3A1593%7D"></figure>
