Bench Vise Pads
prusaprinters

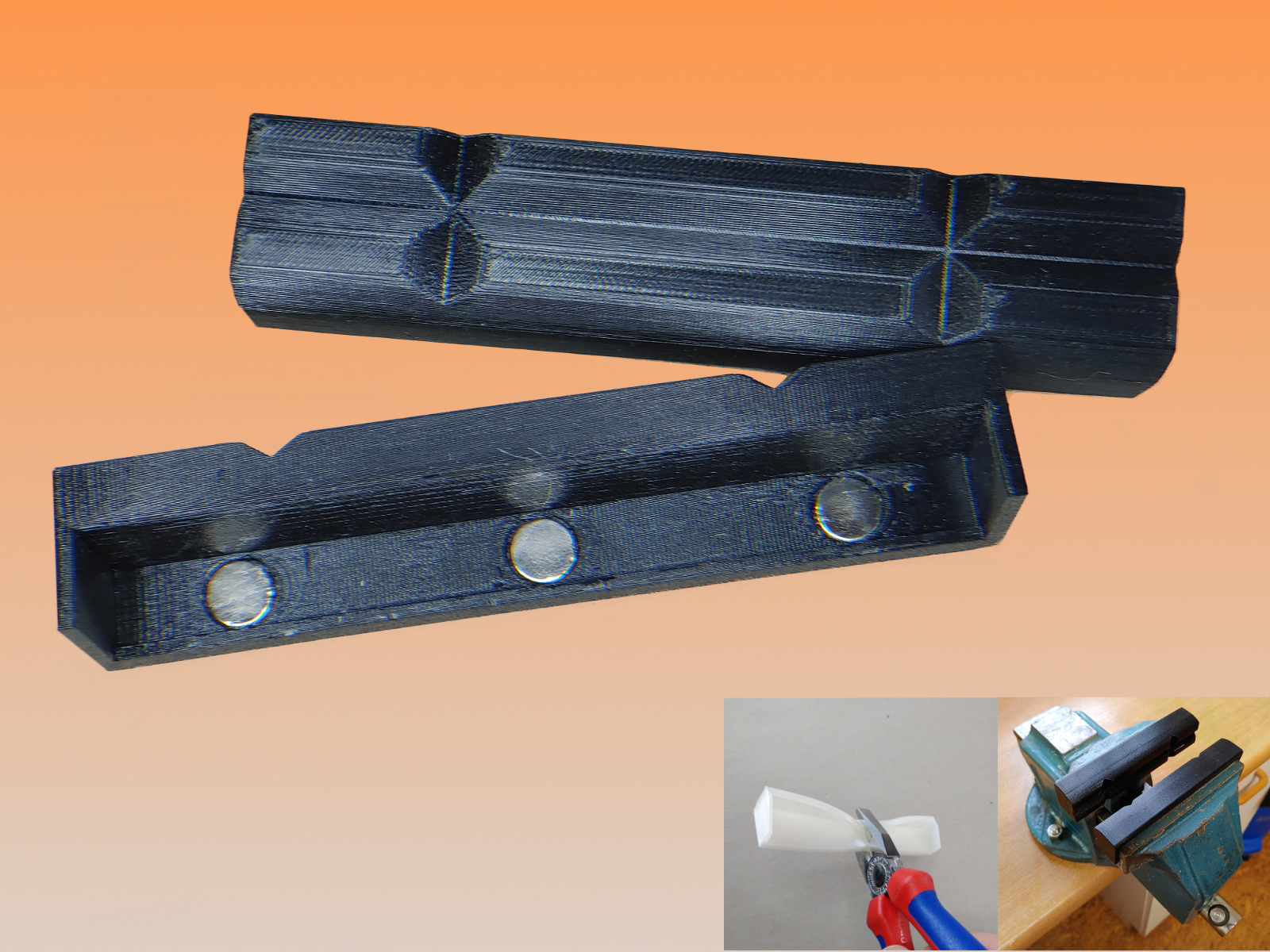

<p>Inspired by TD3D I made my bench vise pads fitting to my bench.</p><p>It has notches for better fixation of round objects. For a better fixation on the bench there is the possibility to add 3 pieces of magnets 3 x 10 mm at the upper side. They can basically just be pressed in, additionally I added some glue.</p><p>The bench vise clearing is 126.0 x 22.0 x 11.5 mm</p><p>Users of FreeCAD can use the model file to adjust parameters in the spreadsheet <i>params</i> like:</p><ul><li>dimensions of bench vise</li><li>dimensions of magnets</li><li>dimensions of pipe notches</li></ul><p>Printing needs support, I propose to print it either like in the model or turned by 180° in order not to stress the layer adhesion.</p><p>For material I have taken PETG with 100% infill.</p><p>Since V1.1.0 you can create also models without magnets and pipe notches. This variant I have printed in TPU with 100% infill for fixing sensitive objects.</p><p> </p><h3>Version History</h3><p> </p><h4>V1.1.0</h4><ul><li>Added “flexible version” without magnets and pipe notches</li></ul><h4>V1.0.0</h4><ul><li>Intial version</li></ul><p> </p><p> </p><p> </p>
