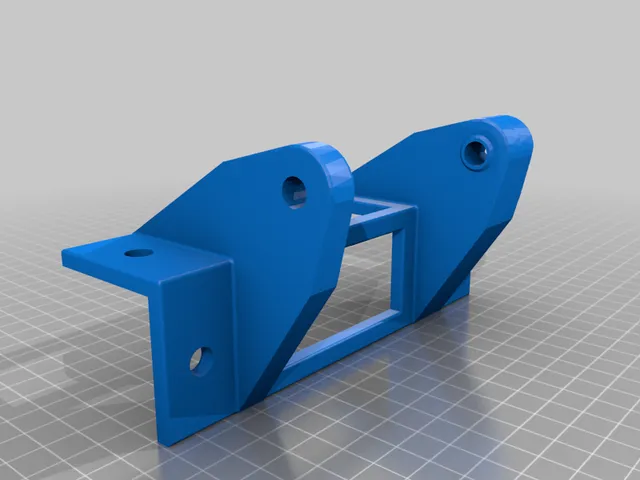

Belt Guide for Belt Tensioner for 40 Series Aluminum Extrusion
prusaprinters
This is a remix of the Belt Guide for Belt Tensioner (Sparco) by darumble (https://www.thingiverse.com/thing:4944378). This will allow the belt guide rollers to be mounted to 40mm aluminum extrusion for belt tensioners used in sim racing and flight simulators. The 45 degree angle was utilized to provide a wide range of clearance options depending on the placement of the belt tensioner. Note: This design requires 110mm M8 bolts.Additionally required:2x M8x110 bolts2x M8 nuts4x 608zz - 8x22x7 ball bearings8x M8x15 mounting bolts8x M8 slot nutsPrint SettingsPrinter Brand:CrealityPrinter: Ender 3Rafts:NoSupports: YesResolution:.2Infill: 15Notes:Print with a 15% infill to allow for breakage in case of safety failure of the belt tensioner. Category: DIY
