(Another) Parametric 3 Drawer Box

cults3d

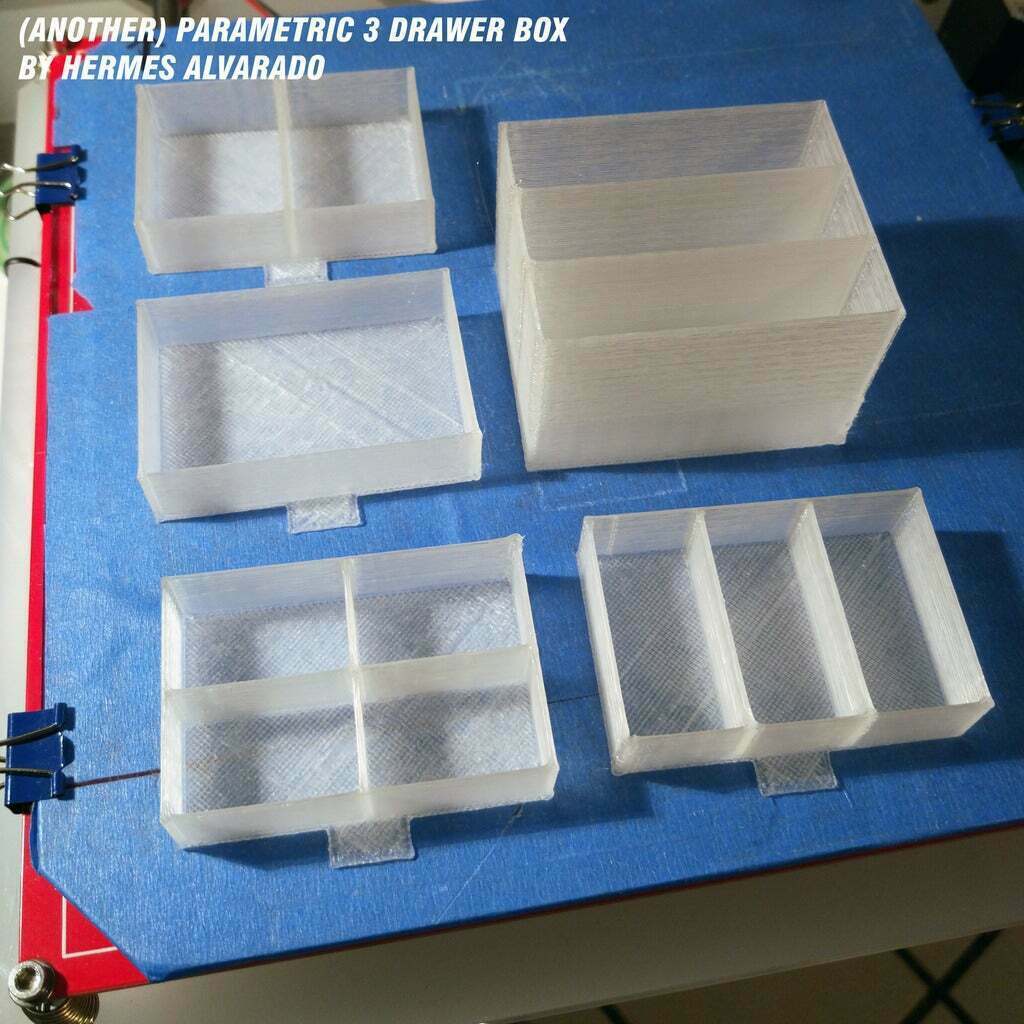

Based in "Parts Tray Drawer" by FatalError3141 [http://www.thingiverse.com/thing:398548], and "Customizable drawer box with hex pattern sides" by gpvillamil [http://www.thingiverse.com/thing:421886], this is my first attempt with customizable drawers box. Designed with printing speed in mind, it's written in OpenSCAD and it's main goal is to be fully parametric so you can define separately the main size of the box, the wall thickness (in case you want to print it with only 1 perimeter to improve speed), the bottom thickness and the tolerance between parts. It includes 4 different types of drawer in the same .scad file, with 1 to 4 divisions that dinamically adapt to main box size. It's designed to be printed without supports. Can be printed without rafts. With thickness parameter defined in 0.6mm it can be printed in about 1 hour and 57 minutes (Cura parameters: layer=0.3mm, Shell=0.4mm, Bottom thickness=1mm, Fill=10%, Speed=65mm/s) Update [20 jan]: I printed the drawer box today, 1 shell only. I included photo of the model. It took 1hr and 36 min using these settings in Cura: - nozzle = 0.4mm - resolution = 0.3mm - shell = 0.4mm - bottom/top thickness = 1mm - infill = 0 - speed = 85mm/s
