Another Ball Bearing

prusaprinters

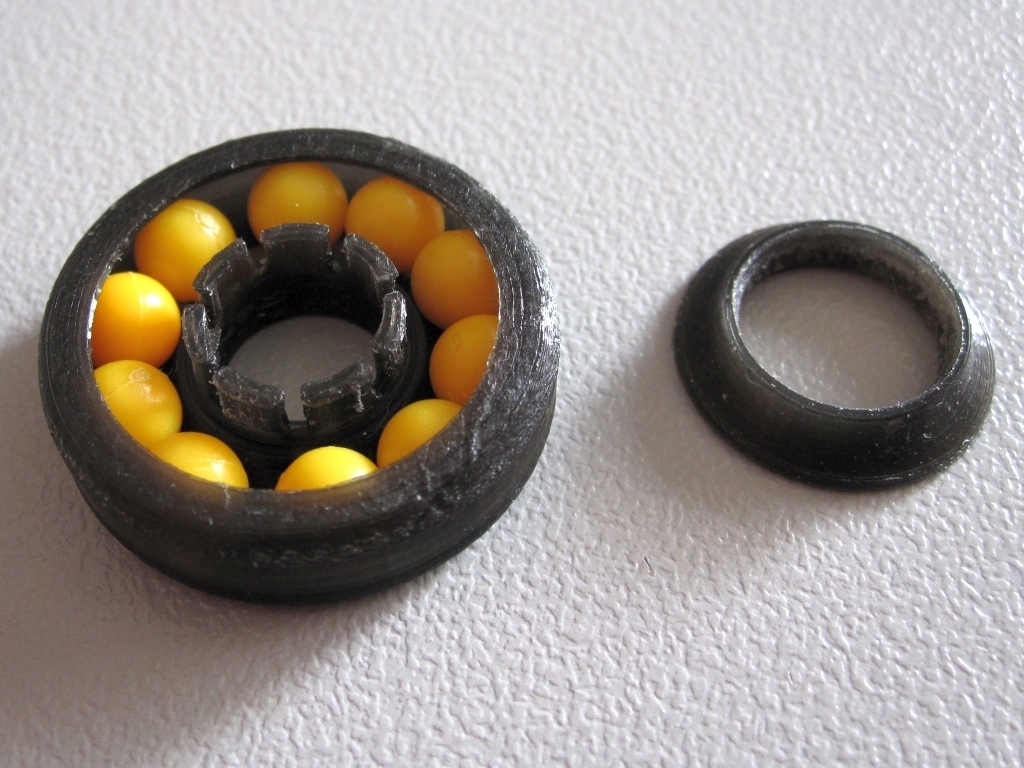

<p>Disclaimer:</p> <p>Due to the recent incidents (things appearing on ebay) I just want to make something very clear:</p> <p>I do not allow any commercial use of my STL-files, my designs and my photos!</p> <p>Description:</p> <p>Yes, it is another ball bearing. I was a little bit bored and this is the result...</p> <p>The ball bearing uses 6mm softair ammo and is designed to snap together. No glue necessary. It has an inner diameter of 10mm and 28 on the outside.</p> <p>The print will take 15...20 min.</p> <p>I made a video to show the assembly: <a href="http://youtu.be/uXTspufYuXM">http://youtu.be/uXTspufYuXM</a></p> <p>EDIT:</p> <p>I uploaded two new inner parts with an diameter of 8mm.</p> <h3>Instructions</h3> <ul> <li>Print the parts (rotate inner2.stl by 180°) - I recommend a layer height of 0.1mm</li> <li>load the balls</li> <li>snap-on the inner part</li> <li>keep on rolling</li> </ul> Category: Other
