Angled Spool Holder for 2020 rail

prusaprinters

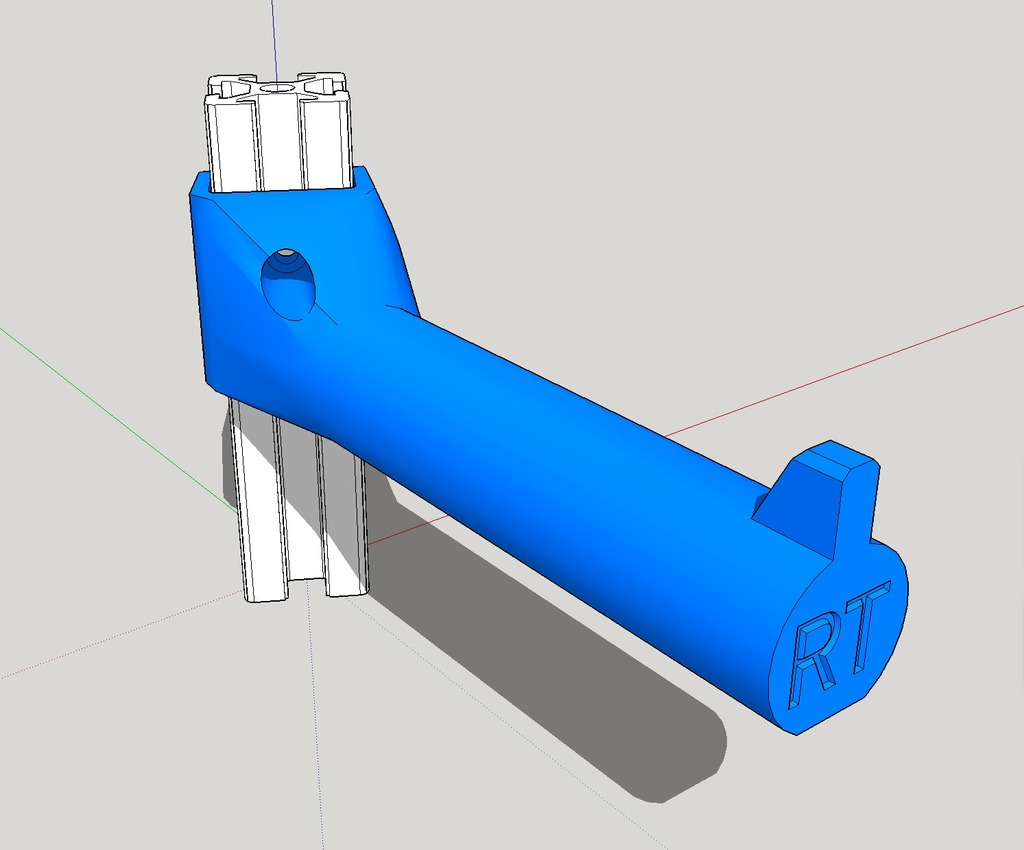

<p>I want the spool to be more flush for my Kossel 2020 delta and have a better path to feed the extruder, I angled my spool holder 60 degrees. Also, I hollowed it out a bit to print a bit faster.</p> <p>For 1kg rolls of filament that are up to 70mm wide.</p> <p>Snaps onto 2020 rail and mounts with an M3x12 screw and drop-in t nut.</p> <h3>Instructions</h3> <p>Printed with a 0.4mm nozzle at .3mm layer height. 20% fill with two perimeters. No supports. Still very solid to hold kilo roll.</p> <p>Needs one (1) M3x12 screw and an M3 drop-in t nut to mount in the 2020 extrusion.</p> <p>Add the screw and the t nut before you snap it onto the rail. Twist up towards the screw hole to remove if you for get the add the mounting screw.</p> Category: 3D Printer Parts
