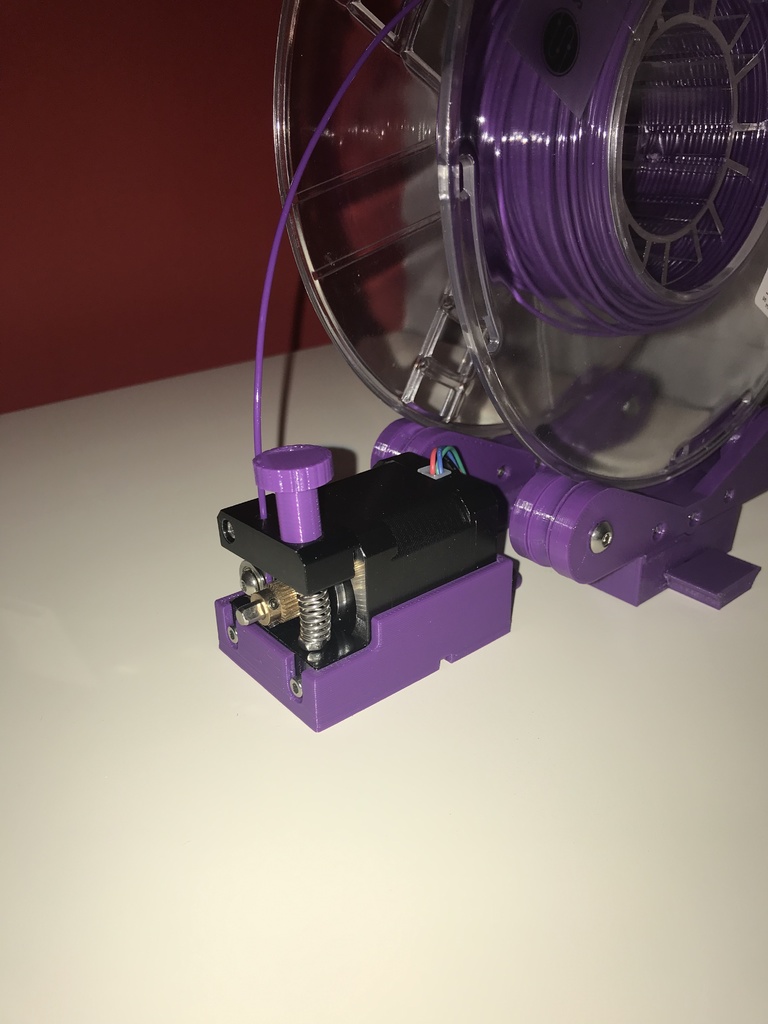

Anet Lack Extruder Mount (42x42x48 Motor)

prusaprinters

<p>Designed to fit an A6 bowden extruder with an upgraded motor (42x42x48mm). It includes a slot for securing a cable tie but I've found that the friction fit is sufficient.</p> <h3>Instructions:</h3> <ol> <li>Use a 16mm flat wood bit to drill a hole.</li> <li>Drop in the insert.</li> <li>Seat the mount over the insert.</li> <li>Screw in place.</li> <li>Slide the bowden tube through the insert.</li> <li>Insert bowden tube into coupler.</li> <li>Seat motor in holder.</li> </ol> <h3>Hardware:</h3> <ul> <li>1 x M3x16mm hex screw</li> <li>2 x M3x20mm hex screws</li> <li>3 x M3 washers</li> <li>2 x M4x20mm wood screws</li> </ul> <h3>Print Settings</h3> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.3</p></div> <p><strong>Infill:</strong></p> <p>20%</p> </p> Category: 3D Printing
