Anet ET4 - Nozzle cleaning brush mount
prusaprinters

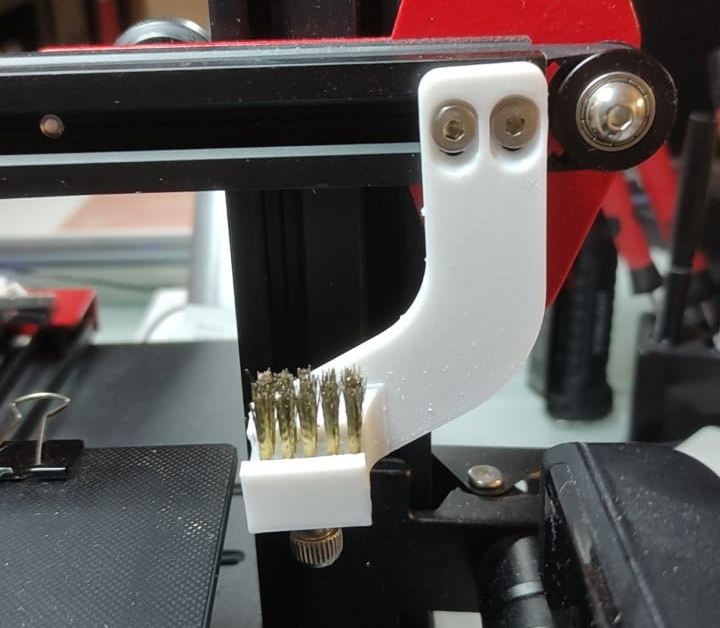

<p>Nozzle cleaning brush mount for Anet ET4/5 and similar printer.</p><p>Your printer must support the M211 code in order to temporarily disable the soft endstop.<br>To clean the leachate from the nozzle before printing, just enter the following codes in the start G-code, after having brought the nozzle to temperature:</p><p>G28 X Y ; Home X and Y<br>M211 S0 ; Software endstop off<br>G1 F3000 ; Set feedrate for all subsequent moves<br>G1 Y118 ; Move Y to center bed<br>; clean nozzle<br>G1 X250<br>G1 X230<br>G1 X250<br>G1 X230<br>G1 X250<br>G1 X230<br>M211 S1 ; Software endstop on<br>G28 Z ; home Z</p><p> </p><p>Additional materials needed:<br>Economic brush<br>2 x 2020 Slide T Nut M4<br>2 x M4 6mm screw<br>1 x M4 6mm Thumbscrew</p><p>See it in action<br><a href="https://youtu.be/q1btbzn4rTk">https://youtu.be/q1btbzn4rTk</a></p>
