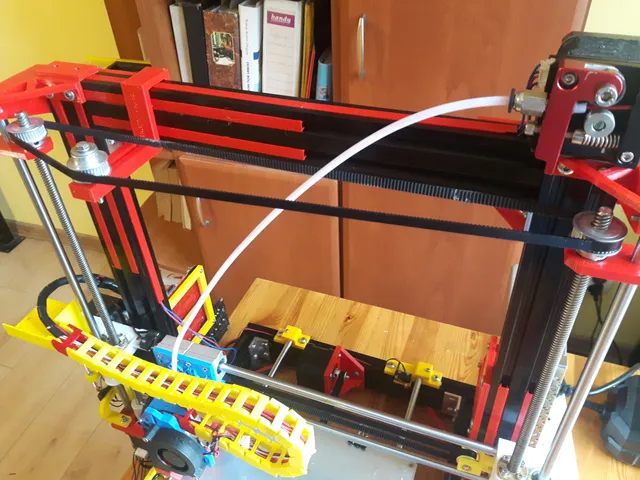

Anet AM8 Z axis system with one engine,
prusaprinters
how it's working: Solves the problem of z axis calibration. You have to disconnect one of the z-axis motors. Belt tensioner & reduction in the link: https://www.thingiverse.com/thing:3008207 https://www.thingiverse.com/thing:3009109 Parts: https://tinyurl.com/y923tn3e 3 pcs, hole 8 mm https://tinyurl.com/y2kkf2gm Superglue -belt glued. bearing 8 x 16 mm -3 pcs belt GT2 closed loop rubber 2GT length 810mm (The tensioner is not needed) screw 3 mm x 15 mm- 2 pcs screw 4 x 40 mm- mm 1 pcs. Print instructionsUnassociated tags: Anet Z axis synchro, Z system, Z tensioner Category: 3D Printing Print Settings Printer: Anet AM8 Rafts: No Supports: No Resolution: 0.2 Infill: 40
