Amiga 1200 microSD holder for modulator space

prusaprinters

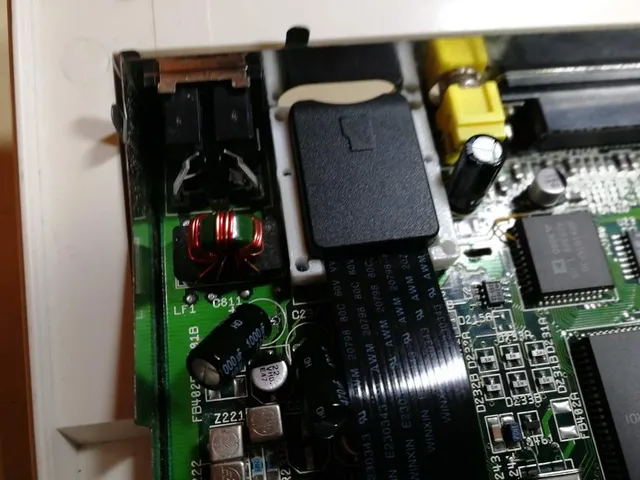

This can be used in your Amiga 1200 if you have the modulator box removed. It enhouses a microSD extender, that you can ordered cheaply from aliexpress. Since the modulator is fairly close to the IDE connector, this is ideal to use it for the main drive with an IDE to SD and an SD/microSD adapter (I've used a 15cm extender) It's not perfectly centered for the hole in the back, because the original modulator is asymmetric, and the sd slot barely fits the space as it is. It doesn't cover the top of the hole, because I don't really care about that. You can mount the bottom part with a pair of M2 screw to the motherboard and put the top on with 4 M3 screws. Length of the screws should be 4-8mm. The top part also have the M2 holes in it, because I orignally indended this top be symmetric, but it wouldn't make any sense. The card will be quite deep, you can install the SD easily, but you'll probably need a pair of tweezers to remove it. Source files attached. Category: Computer
