Amiga 1200 light pipe LED assembly
prusaprinters

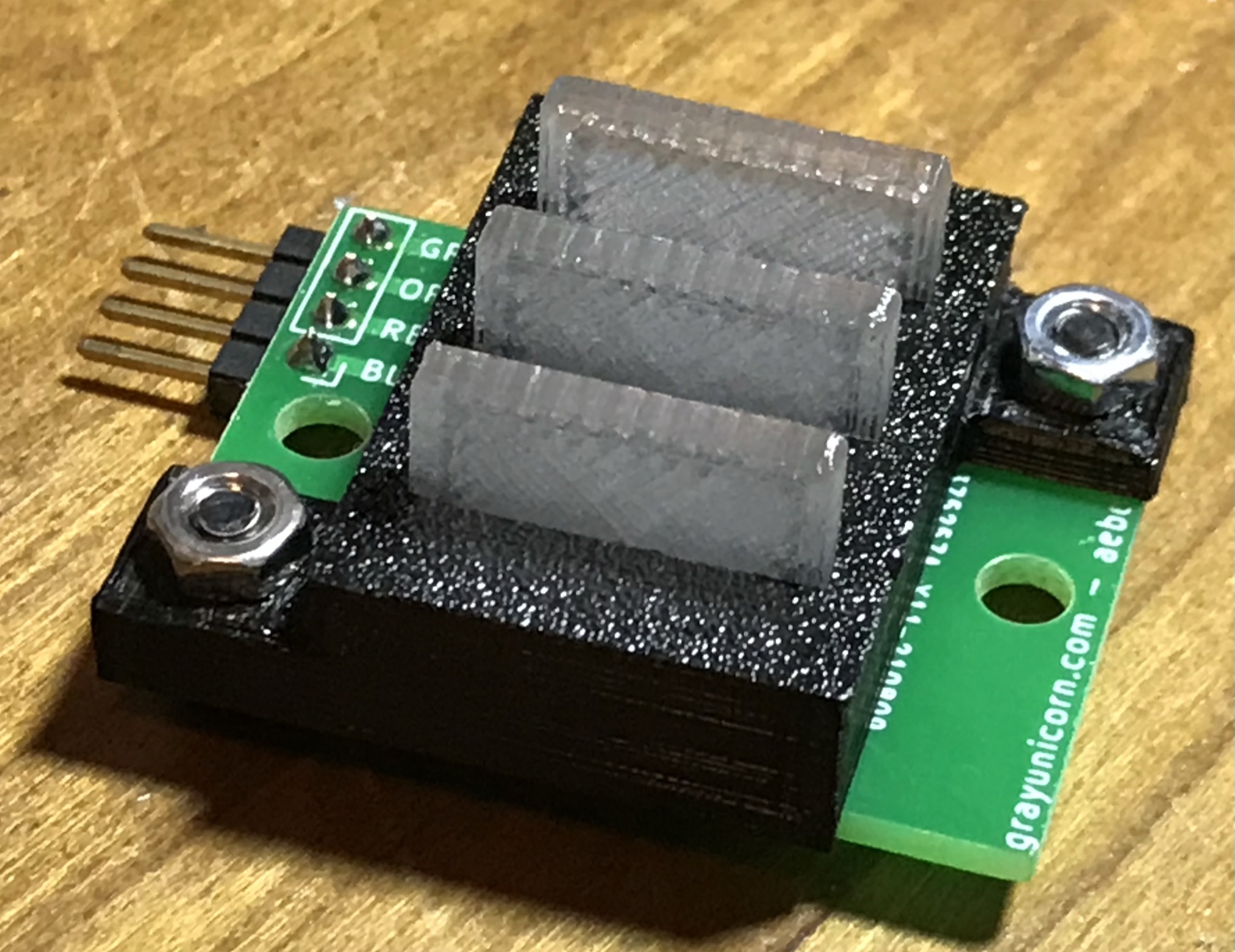

<p>I made a ReAmiga 1.5 recently and it is in an A1200.net case. I made this from scratch rather than buy one.</p><p>The PCB is available at my <a href="https://github.com/aeberbach/A1200-LEDs">github repo</a>. When you have added resistors and LEDs and the connecting cable the three light pipes are printed, inserted into the opaque base and then the unit fastens to the inside of the A1200 case. </p><p>Original C= cases and A1200.net cases use different sized light pipes. If you have an original case you want the 15mm version, for A1200.net use 16mm. I printed the light pipes in Prusament clear and the opaque base in black. If you print the base in transparent also you will get too much light bleed through.</p><p>Originally I thought the light pipes would work best if printed standing up, but flat is best for light transmission.</p>
