Aesthetic Wall Organizer (Embedded Magnetic Hooks)

prusaprinters

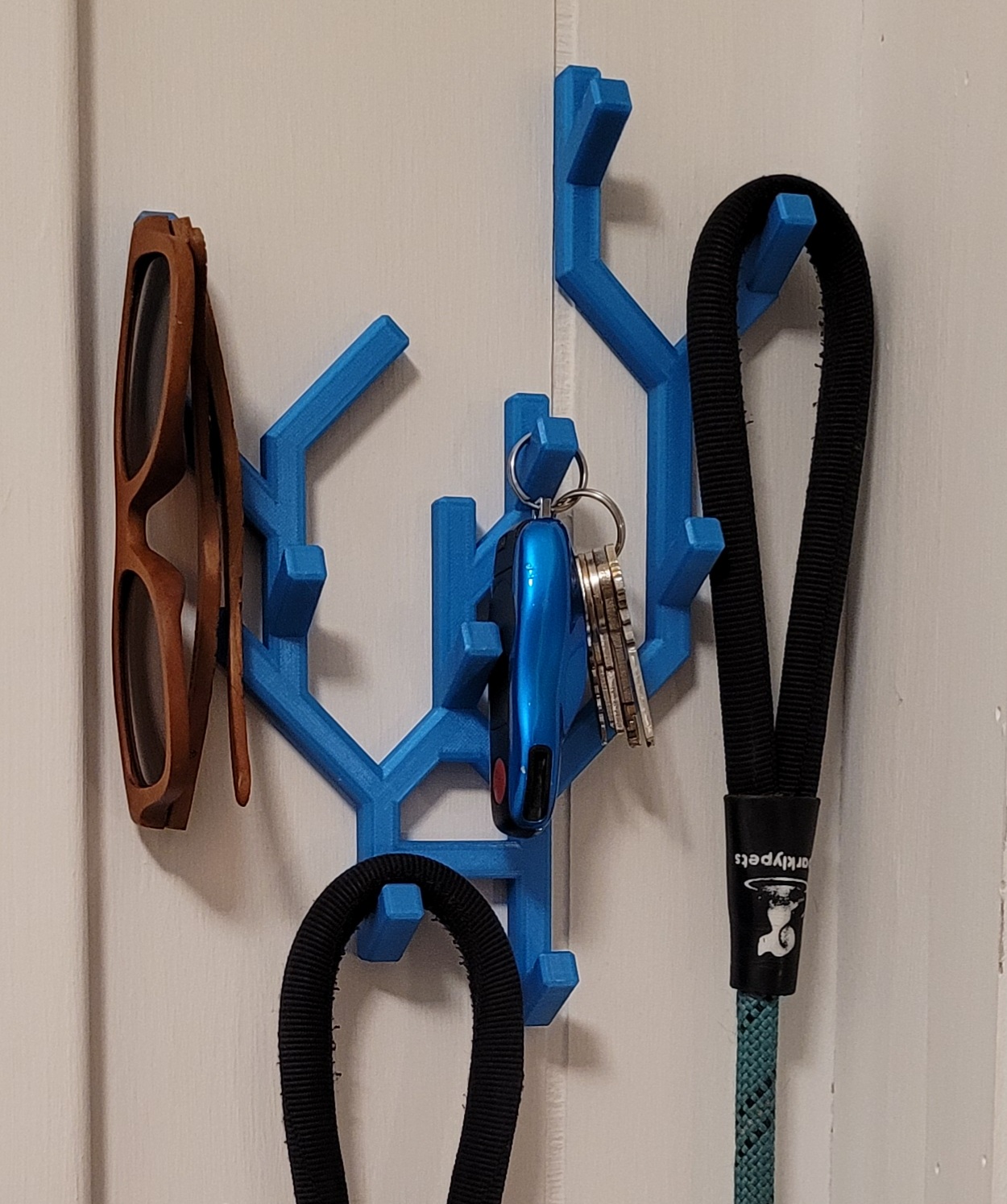

<p>Nice wall organizer for keys, masks, et cetera.</p><p>Added embedded magnets with detents on the hooks so that your keys just hang onto the ends.</p><p>This remix is a fork of the chamfered version by cordilon. I liked his mounting hole addition so I started with that. I'm not sure why he reduced the size so I elongated a few parts to maximize the height on the MK3S+ plate.</p><p>Requires (18) 3mm x 6mm cylindrical magnets. I double stacked them so If you have 6mm x 6mm cylinders then that would work too.</p><p>Designed in Blender.</p><h3>Print instructions</h3><p>A pause <strong>must</strong> be set just before the bridge occurs to cover the magnets. This is at 27.35mm for 0.15 layer height or 27.4mm for 0.2 layer height. The included 3mf file has the pause included.</p><p>Printed 3 perimeters but used a modifier near the wall mount to increase perimeters to 7 for sturdiness - not strictly necessary. I did 30% infill - seems sturdy.</p><h4>Hanging</h4><p>This design has 2 built-in slots for screw mounts, but I ended up cutting two command strips lengthwise to make four thin strips narrow enough to stick to the back of this. Seems very strong and I can even hang a dog leash if I want.</p>
