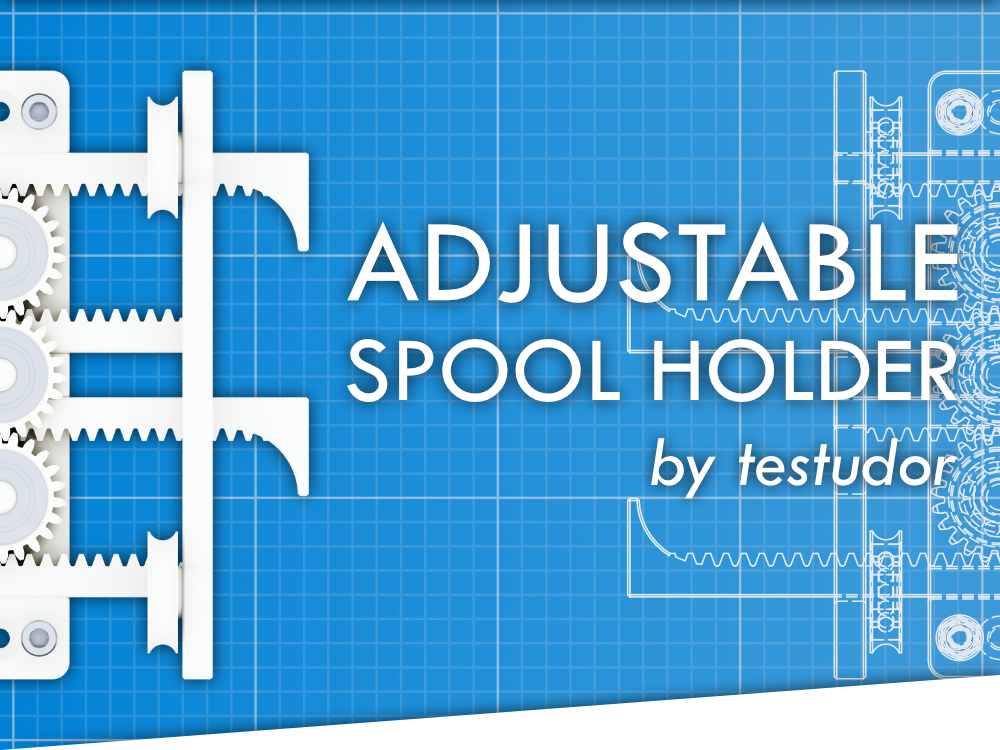

Adjustable Spool Holder

prusaprinters

<p>This is a fully adjustable spool holder designed to be screwed down onto your enclosure. It can take spools from 40mm to 180mm width (almost any spool you can find on the market!). A gear system links the left and right side together, if you move one side the other moves as well. I recommend you use some kind of filament guide like this one: <a href="https://www.prusaprinters.org/prints/58073">https://www.prusaprinters.org/prints/58073</a> for the popular IKEA Lack enclosure.&nbsp;</p><p>Printed parts:</p><ul><li>1x Bottom Plate.stl</li><li>1x Top Plate.stl</li><li>2x Side Plate.stl</li><li>4x Rack.stl</li><li>4x Roller.stl</li><li>2x Gear thick.stl</li><li>1x Gear thin.stl</li></ul><p>Hardware:</p><ul><li>9x 608 bearing (608ZZ or open; Sealed bearings might not work)</li><li>4x M5x16 socket head screws + nuts</li><li>2x 4mm countersunk wood screw</li></ul><p>For Remixers:<br>The STEP file: <a href="https://github.com/testudor/adjustable-spool-holder">https://github.com/testudor/adjustable-spool-holder</a></p><p>Changelog:</p><ul><li>22.01.2020: Made recess holes for M5x16 a little wider and less deep</li></ul><p>Print instructions:</p><p>Use 40% infill for racks, print everything else in 15%. Depending on your print's dimensional tolerances you might have to glue the racks into the side plate or have to sand some pieces until they fit.<br>If you own a Prusa MK3/MK3S you should not need any sanding/glue at all.</p>
