Adjustable 5015 Hemera Shroud with PINDA

prusaprinters

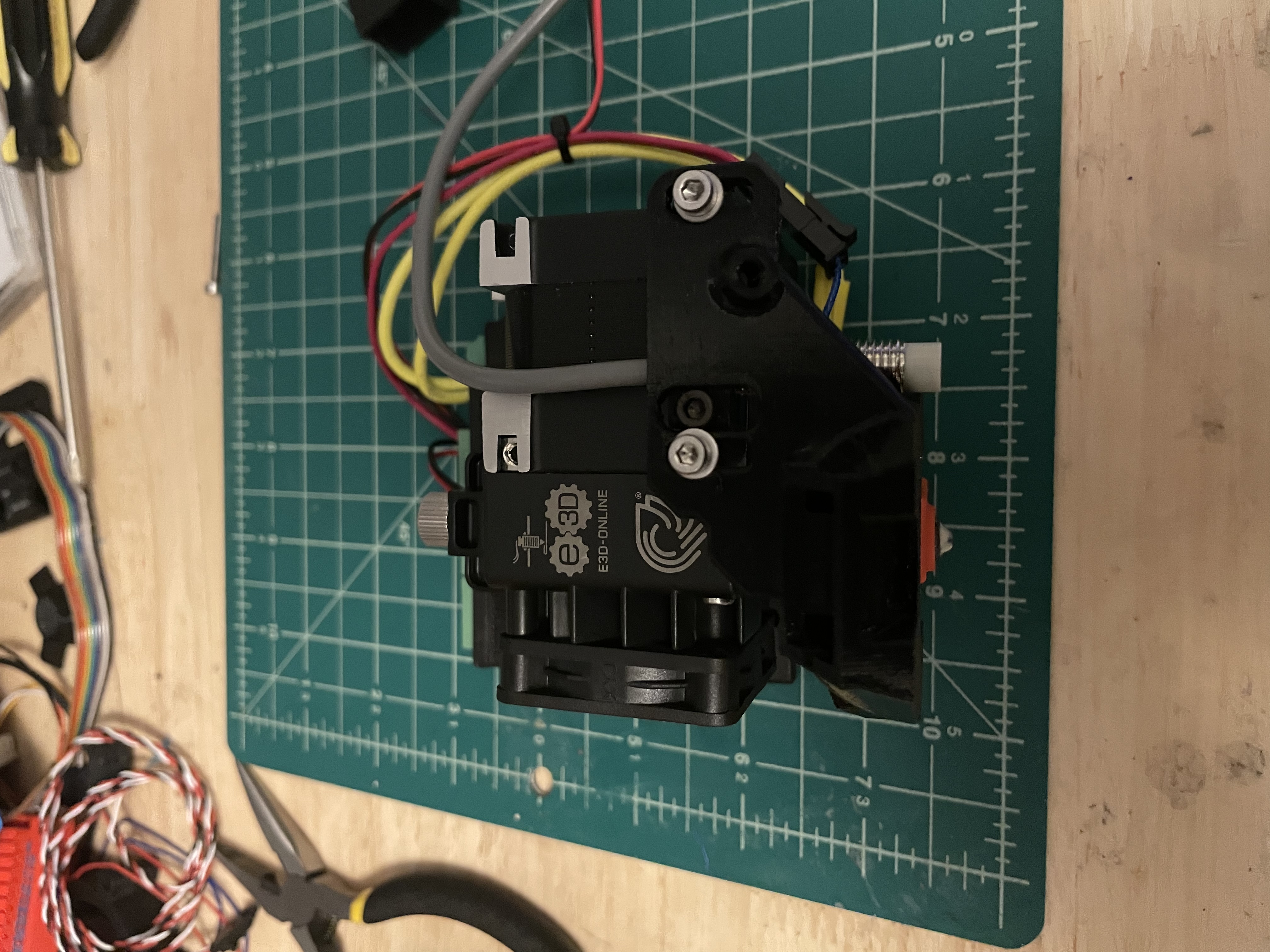

<p>I wanted to use a PINDA probe with a Volcano on a Hemera. Was using just the shroud and PINDA mount from this: <a href="https://www.thingiverse.com/thing:4076234">https://www.thingiverse.com/thing:4076234</a>. &nbsp;Threw it into Fusion 360 and hacked together what I needed. The fan isn't super secure since it is only held by one screw, but it hasn't been an issue. Tthere is some sort of arm/filament sensor that I have not bothered with yet on the original thing. It is a dead work in progress, so I am not sure I ever will.&nbsp;</p><p>The setup sticks out quite a bit in the -Y, but you shouldn't loose any build space on i3 type machines.</p><p>I modified what I assume is the original model (<a href="https://www.thingiverse.com/thing:4031637">https://www.thingiverse.com/thing:4031637</a>) to be capable of working with the PINDA mount. Including that file here as well since it is useless without it.</p><p>Offsets:</p><ul><li>X Offset: 26</li><li>Y Offset: -33.8</li></ul><p><br>Print Settings:</p><ul><li>Print with PETG or something with heat resistance</li><li>0.2mm Layer Height</li><li>20% Infill</li><li>Supports from Build Plate only</li></ul>
