96mm diameter wheel

prusaprinters

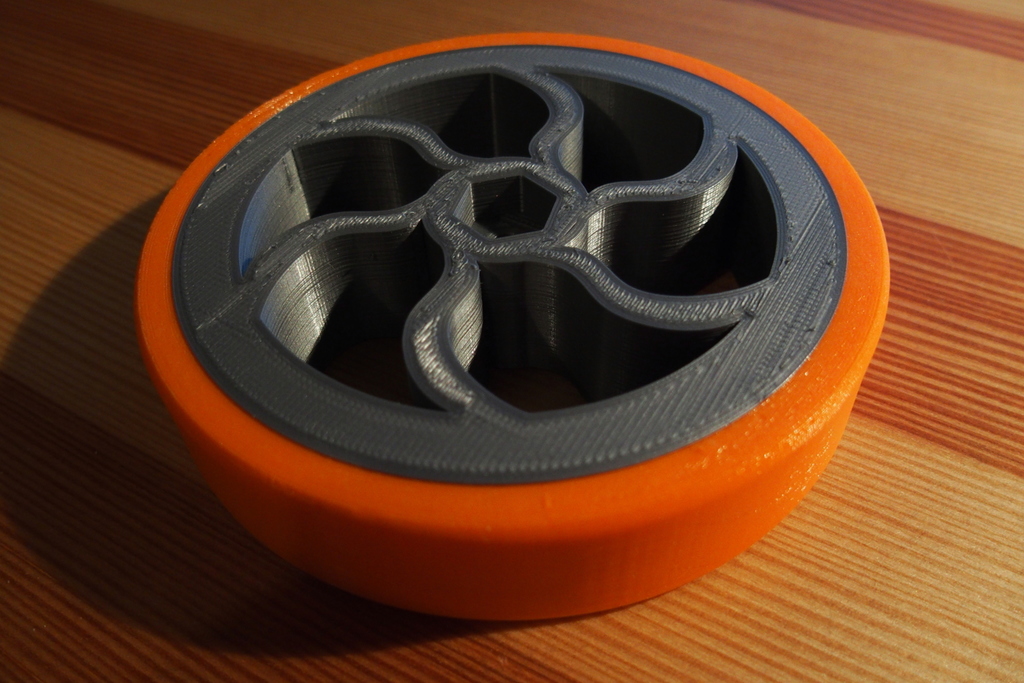

<p>This is a 96mm diameter wheel used for robotics / RC vehicle projects.</p> <p>It is made of two parts :</p> <ul> <li>the wheel which can be printed using PLA or any other material</li> <li>the tire which must be printed using flexible material</li> </ul> <p>The wheel is attached to the motor shaft using an hexagonal coupler which can be easily purchased.</p> <p>I designed these parts using Onshape software. Design files are available using following links :</p> <ul> <li>wheel and assembly : <a href="https://cad.onshape.com/documents/ecf5e6d8ba942ddfc8c4c212/w/98fcf049e859f69c818193c0/e/5722828145b2ebc70e712388">https://cad.onshape.com/documents/ecf5e6d8ba942ddfc8c4c212/w/98fcf049e859f69c818193c0/e/5722828145b2ebc70e712388</a></li> <li>tire : <a href="https://cad.onshape.com/documents/4d86b8862fd8f72c53feb419/w/a433ce76eab0a0c761084bf7/e/028f11c76c2e04448305ab59">https://cad.onshape.com/documents/4d86b8862fd8f72c53feb419/w/a433ce76eab0a0c761084bf7/e/028f11c76c2e04448305ab59</a></li> </ul> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK2S</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0.15</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>20%</p></div> <p><strong>Notes:</strong></p> <p>Wheel was printed using PLA.</p> <p>Tire has to be printed using flexible material. I used Filaflex filament from Recreus.</p> </p></p></p> Category: Robotics
