5015 Blower Modification for Ender 3 V3 SE

prusaprinters

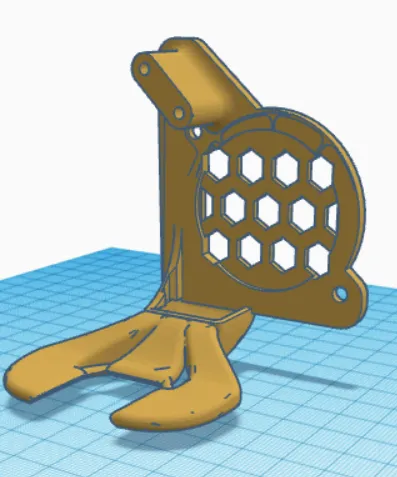

Material:5015 Fan: https://amzn.to/48iaoK5PETG: https://amzn.to/41nVEqFOverviewThis document details a custom modification for the Ender 3 V3 SE 3D printer, featuring the installation of a 5015 radial blower with an innovative 3-way air duct. This modification is designed to enhance cooling and airflow management, improving print quality.Modification ObjectivesEnhanced Cooling:* The 5015 blower provides a stronger, more focused airflow.Efficient Air Distribution:* The 3-way duct ensures even air distribution across the print bed.Customized Mounting:* Designed for easy integration without significant alterations to the Ender 3 V3 SE.Print Quality Optimization:* Improved airflow minimizes issues like warping and stringing.Design DetailsBlower Type:* 5015 radial blower.Duct Design:* Custom-designed 3-way duct for optimal airflow.Materials:* Heat-resistant PLA or PETG.Mounting:* Direct integration with the printer's existing fan mount.InstallationOriginal Fan Removal:* Remove the existing fan from the Ender 3 V3 SE.5015 Blower Installation:* Attach the new blower to the print head.Duct Adjustment:* Fit the 3-way duct onto the 5015 blower.Wiring:* Ensure proper wiring of the blower to the printer motherboard.Test Print:* Conduct a test print to verify installation.Usage Notes- Ensure compatibility with your specific Ender 3 V3 SE model.- Firmware adjustment is not required for this modification.ConclusionThis 5015 blower and 3-way air duct modification for the Ender 3 V3 SE significantly enhances print quality and reliability by providing more efficient cooling and precise airflow control.
