30X30 DUAL FAN MOUNT

prusaprinters

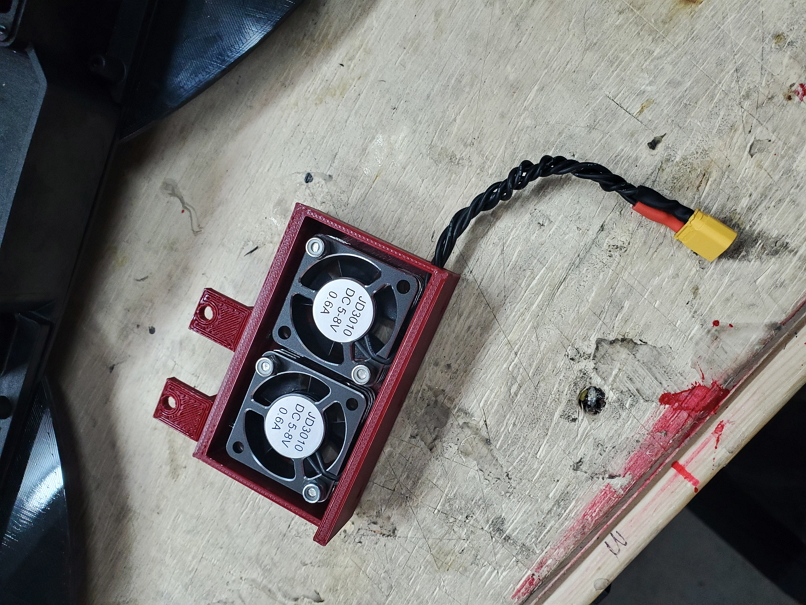

<p>Made my own fan mount for the Arrma Limitless.<br/>Seen several guys on YouTube who do not use heat sinks and simply just have the fans laying over the motor which seems to be popular.<br/>Its designed to fit the stock brace on the Limitless and can be repositioned some what easily yet still maintain a good hold.<br/>"Depending on your setup" there is a "lip" on this mount so it can rest upon the motor and also acts like a shield to help control airflow.<br/>Once I test this (still waiting on Motor/ESC) I may add additional flow control to the design.<br/>Comes with mounts to attach to the brace.<br/>3 files include:<br/>Dual30x30FanMount.stl<br/>FanMount-1.stl<br/>FanMount-2.stl</p><p>Here are the fans I used, BTW they blow "plenty" of air and can be used with a 2S Lipo which is my game plan. They are well made and have an aluminum case:<br/><a href="https://www.amazon.com/gp/product/B083DX5J57/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&amp;psc=1">https://www.amazon.com/gp/product/B083DX5J57/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&amp;psc=1</a></p><p>All parts (ATM) were printed in PLA<br/>3 perimeters<br/>4 top 4 bottom layers<br/>.02 layer height<br/>20% infill</p><p>EDIT 4-2-21</p><p>After mounting my motor I decided to make a small edit on the mount itself. With the current version the fan nuts were touching the motor on my setup (yours may vary) so I placed 3 small ears on the mount so as the mount would rest upon the motor instead of the nuts. File Name 30x30Mount-V3</p>
