101Hero E3Dv6 Carrier & Blower Ducts

prusaprinters

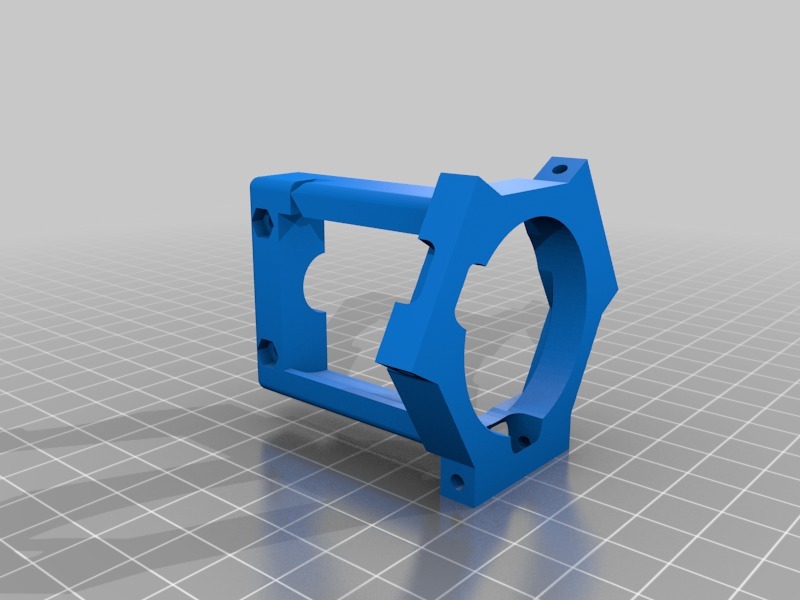

<p>This is a hotend &amp; active cooling carrier design for an E3Dv6 hotend and 2 40mm blowers. The fit of the ducts is very close to exact, so it may take some filing on the carrier to get them to slide into place. Once in place, I would recommend gluing them to the carrier at the connection points for added stability. They should not move if left unglued because the motors should be applying enough angular force to hold them but better safe than sorry.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>101Hero</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>Doesn't Matter</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.18mm or smaller</p></div> <p><strong>Infill:</strong></p> <p>20% or higher</p> </p></p> Category: 3D Printer Accessories
