1/4 Wave Ground Plane Antenna center block
prusaprinters

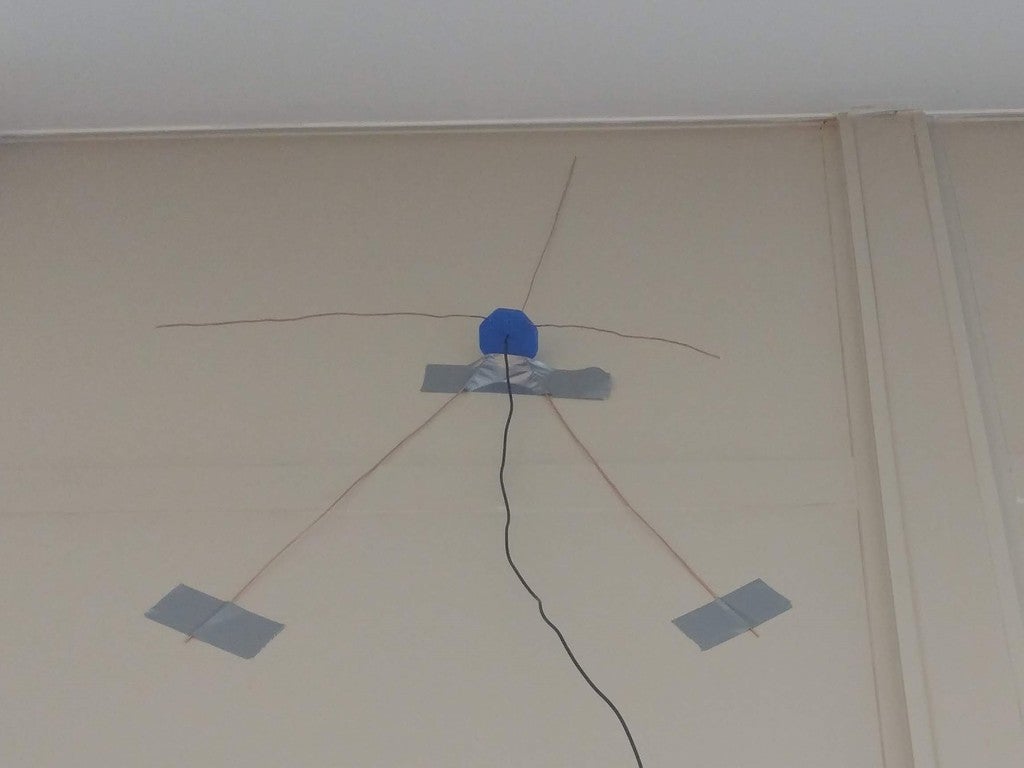

<p>This is a simple center block for the construction of a quarter wave ground plane antenna. You just need some solid wire and glue. The four bottom wires go in a 45 degree angle, all connected to ground.</p> <h3>Print instructions</h3><p>Calculate the length you need: <a href="https://m0ukd.com/calculators/quarter-wave-ground-plane-antenna-calculator/">https://m0ukd.com/calculators/quarter-wave-ground-plane-antenna-calculator/</a></p> <p>The antenna in the pictures is an AIS antenna, make your own AIS station with a Raspberry Pi and a DIY antenna: <a href="https://github.com/innovationgarage/ElCheapoAIS">https://github.com/innovationgarage/ElCheapoAIS</a></p>
